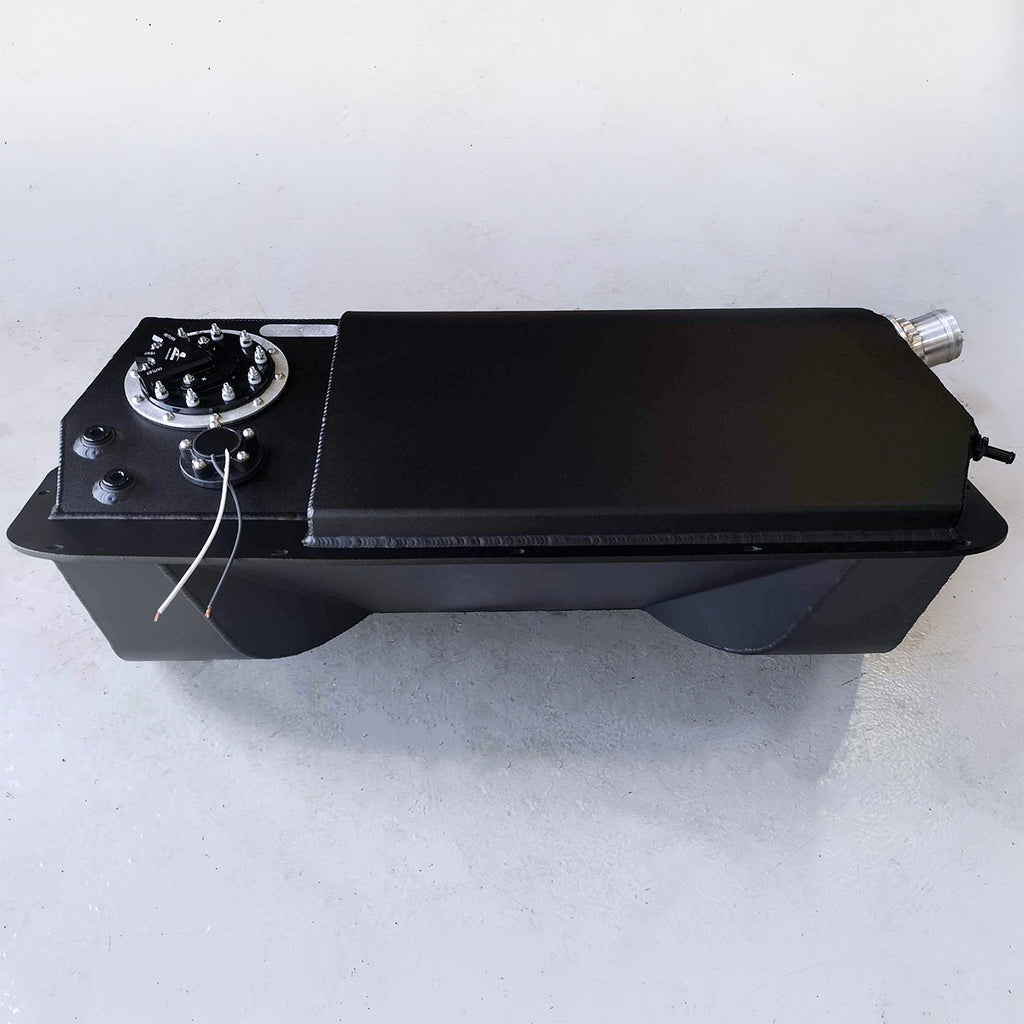

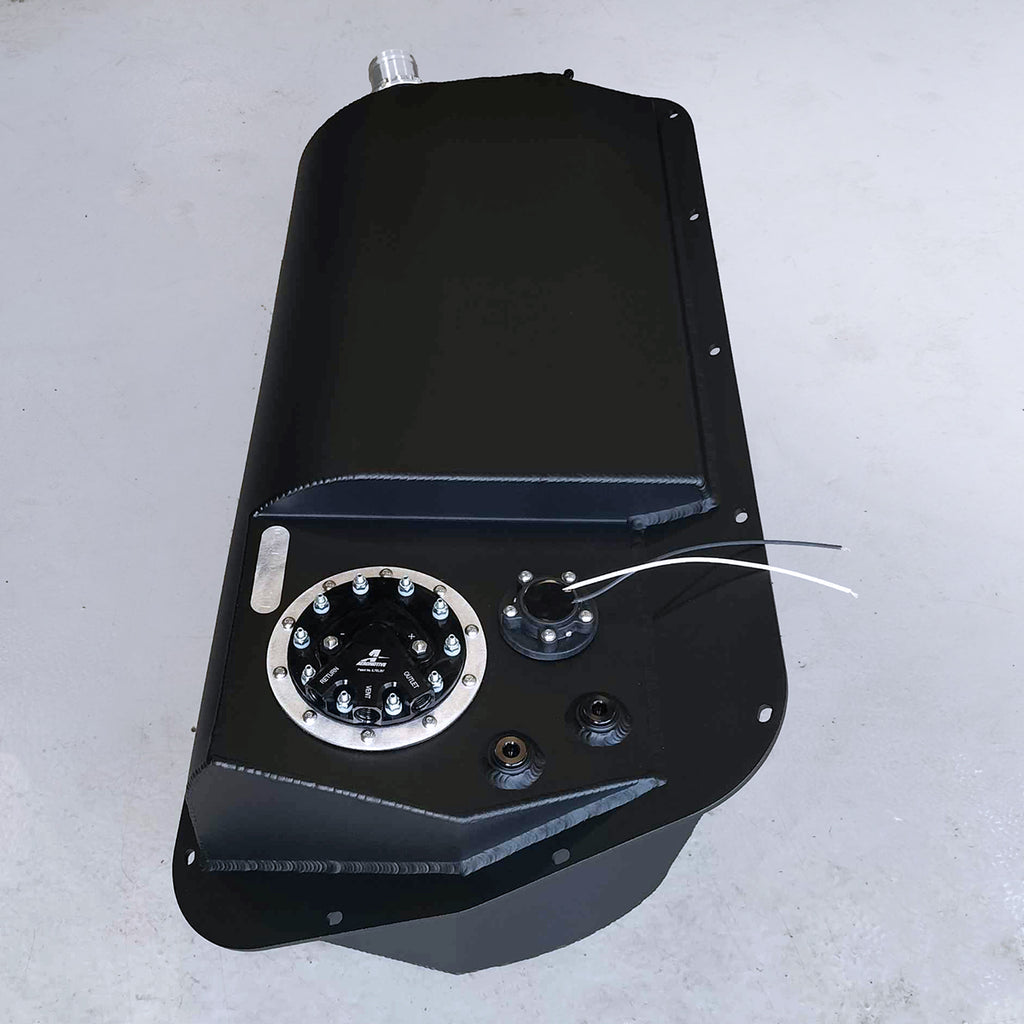

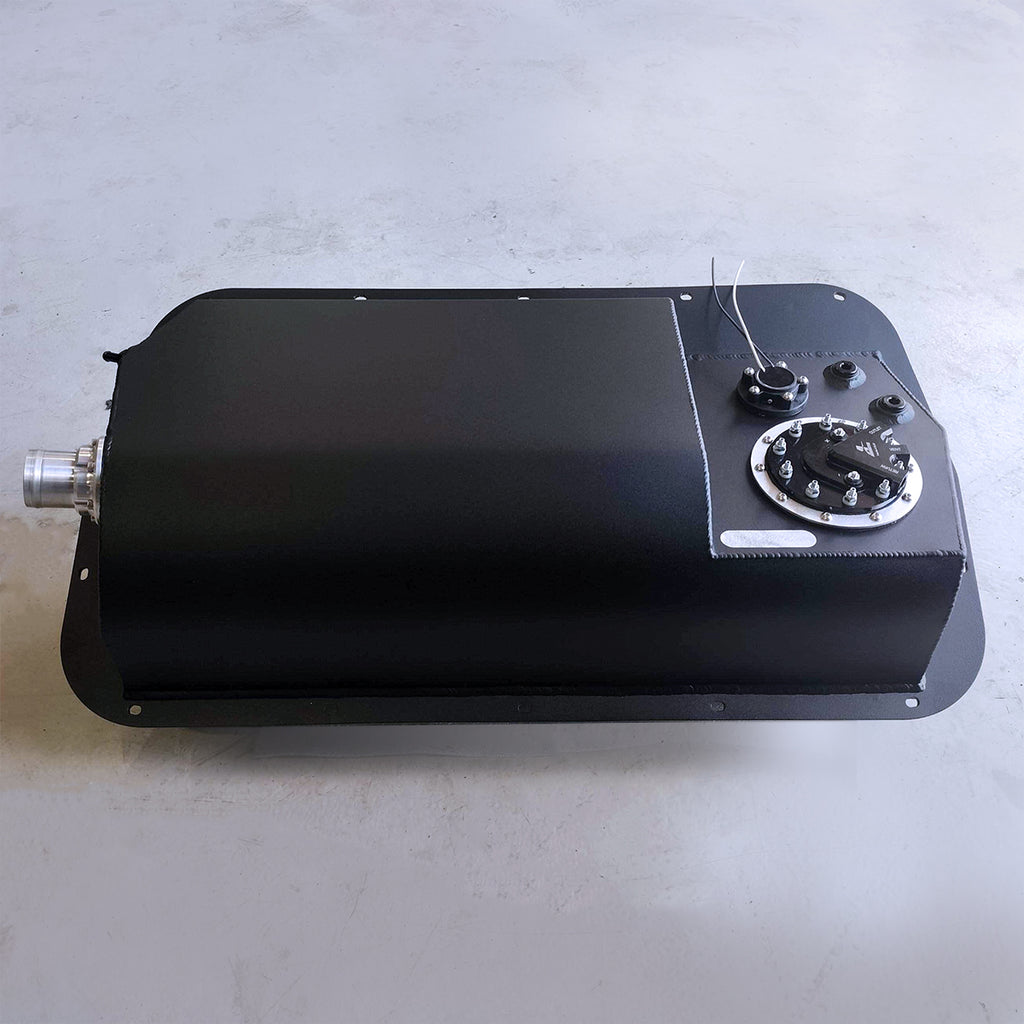

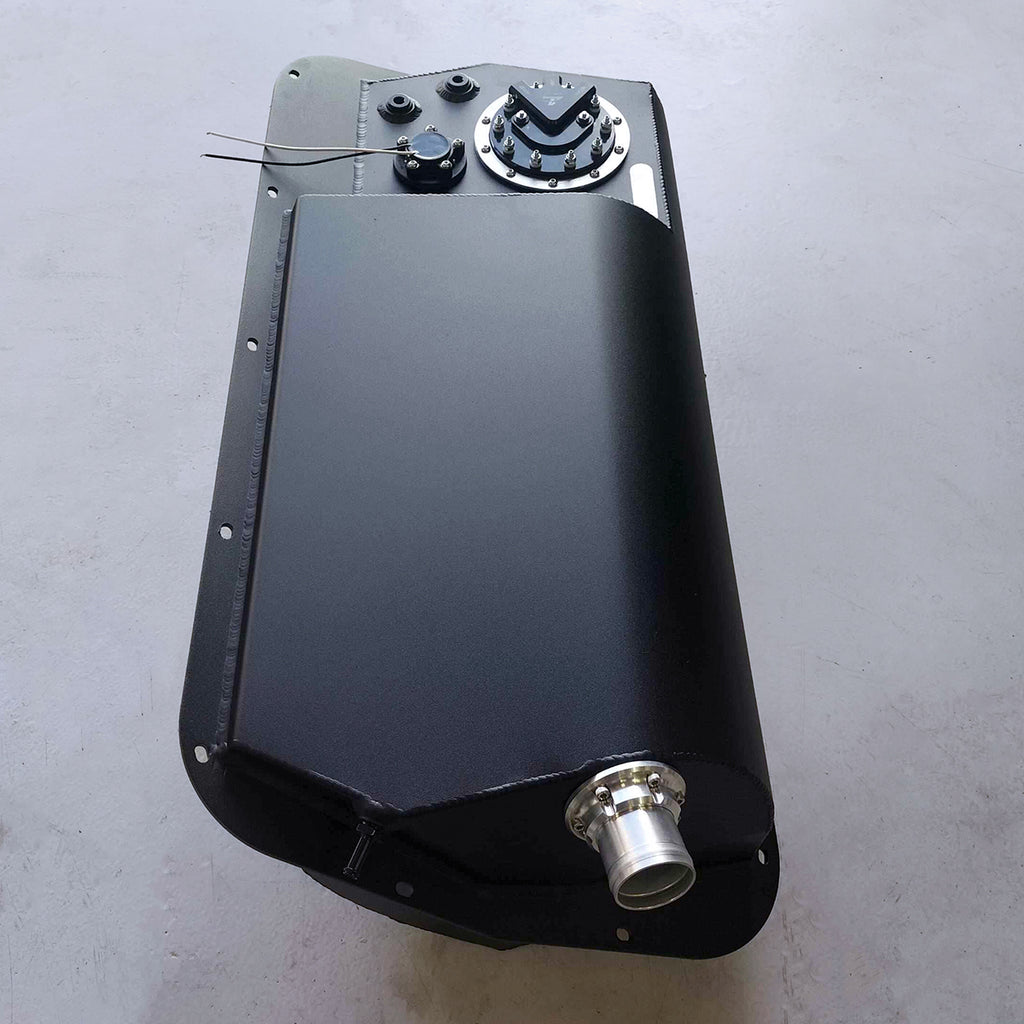

HD-HR Holden EFI Ready Fuel Tank

We now offer these direct replacement, bolt in (no modifications necessary) aluminium fuel tanks for HD-HR Holdens. They are EFI ready and also will work for carburetted applications.

Internally baffled and sumped for fuel control
3mm TIG welded aluminium construction
Direct bolt in fit
Suitable for EFI or carburetted applications
Designed to accept Aeromotive in-tank fuel pumps, but also supplied with a universal cut-to-fit pump mount plate to suit other styles
Complete with modern tube type sending unit (available in different ohm ranges)
Capacity: 62L
Billet fuel filler neck connects to existing filler
Powder coated as standard
4 x -8 ORB outlets (block off fittings supplied)

Optional fuel pumps:

Aeromotive Phantom 200

Supports up to
– 450 HP EFI – Forced Induction
– 600 HP EFI – Naturally Aspirated
– 600 HP Carbureted – Forced Induction
– 750 HP Carbureted – Naturally Aspirated

Aeromotive Phantom 340

Supports up to
– 700 HP EFI – Forced Induction
– 850 HP EFI – Naturally Aspirated
– 850 HP Carbureted – Forced Induction
– 1000 HP Carbureted – Naturally Aspirated

Aeromotive Trifekta

Supports up to
– 2400 HP EFI – Forced Induction
– 3300 HP EFI – Naturally Aspirated
– 2850 HP Carbureted – Forced Induction
– 3900 HP Carbureted – Naturally Aspirated
– 1650 HP EFI – Forced Induction (E85)
– 2250 HP EFI – Naturally Aspirated (E85)
– 2100 HP Carbureted – Forced Induction (E85)
– 2700 HP Carbureted – Naturally Aspirated (E85)
